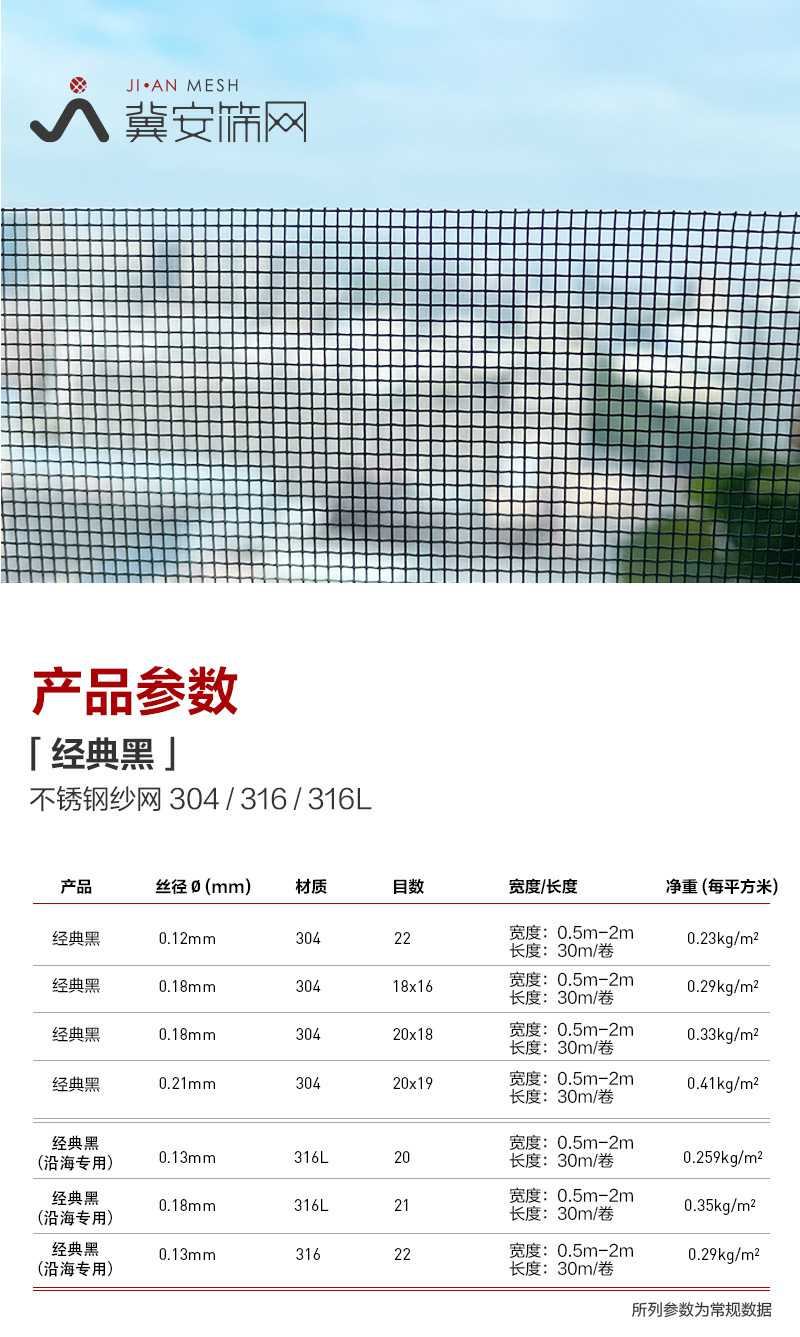

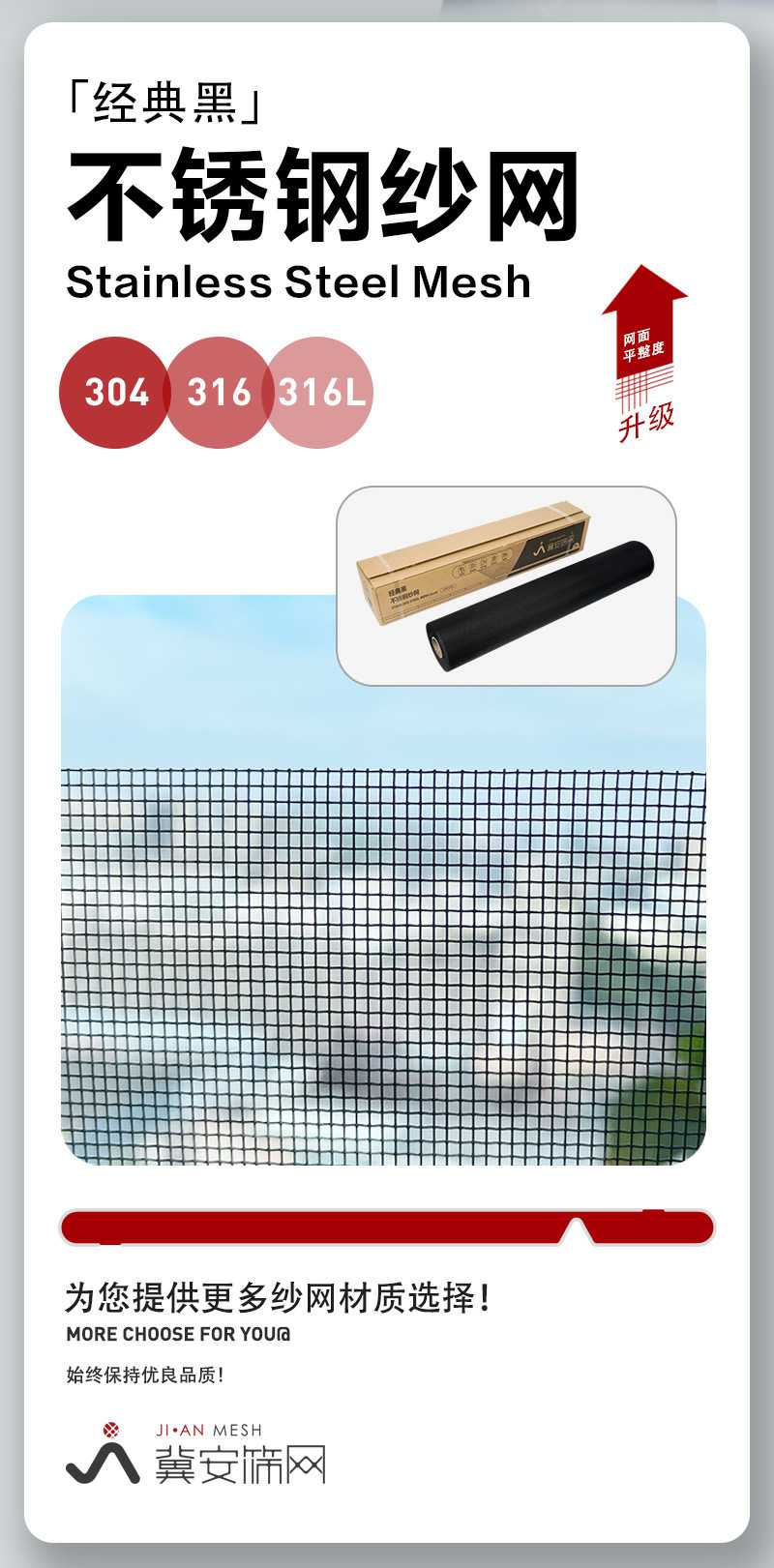

產品名稱：304經典黑不銹鋼網 Steel screen mesh (black)
品牌名稱：冀安篩網 JI'AN MESH
產品材質：國標304，通過質量技術監督局7項元素鑒定
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：22目 Mesh
Weft thread count 緯線密度：20目 Mesh
Warp wire diameter 經線絲徑：0.12mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.12mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.23kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：30μm
Curing conditions 固化條件：200°C / 2m/min 平爐Flat furnace
Color顏色：黑色 Black
Packing包裝：紙箱 Carton
Ventilation rate通風率：81%
Open area ratio開孔率：81%
Aperture size孔徑：1034 μm
Light transmittance透光率：85%
Ultraviolet blocking rate紫外線阻隔率：23%
Infrared blocking rate紅外線阻隔率：19%
Material類型(材質): 316不銹鋼 316 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：20目 Mesh
Weft thread count 緯線密度：18目 Mesh
Warp wire diameter 經線絲徑：0.13mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.13mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.259kg
Elogation (%)延展率(%)：50-60%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：650-730MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：30μm
Curing conditions 固化條件：200°C / 2m/min 平爐Flat furnace
Color顏色：黑色 Black
Packing包裝：紙箱 Carton
Ventilation rate通風率：81%
Open area ratio開孔率：81%
Aperture size孔徑：1140 μm
Light transmittance透光率：85%
Ultraviolet blocking rate紫外線阻隔率：23%
Infrared blocking rate紅外線阻隔率：19%
Material類型(材質): 316不銹鋼 316 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：21目 Mesh
Weft thread count 緯線密度：19目 Mesh
Warp wire diameter 經線絲徑：0.18mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.18mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.29kg
Elogation (%)延展率(%)：50-60%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：650-730MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：30μm
Curing conditions 固化條件：200°C / 2m/min 平爐Flat furnace
Color顏色：黑色 Black
Packing包裝：紙箱 Carton
Ventilation rate通風率：74%
Open area ratio開孔率：74%
Aperture size孔徑：1156 μm
Light transmittance透光率：84%
Ultraviolet blocking rate紫外線阻隔率：45%
Infrared blocking rate紅外線阻隔率：37%
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：18目 Mesh
Weft thread count 緯線密度：16目 Mesh
Warp wire diameter 經線絲徑：0.18mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.18mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.29kg
Elogation (%)延展率(%)：45-55%
Coating涂層：復合樹脂 Composite resin
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：靜電噴涂 Electrostatic spraying
Coating thickness（μm）涂層厚度（μm）：30μm
Curing conditions 固化條件：200°C / 2m/min 平爐Flat furnace
Color顏色：黑色 Black
Packing包裝：紙箱 Carton
Ventilation rate通風率：68%
Open area ratio開孔率：68%
Aperture size孔徑：1160μm
Light transmittance透光率：78%
Ultraviolet blocking rate紫外線阻隔率：42%
Infrared blocking rate紅外線阻隔率：35%

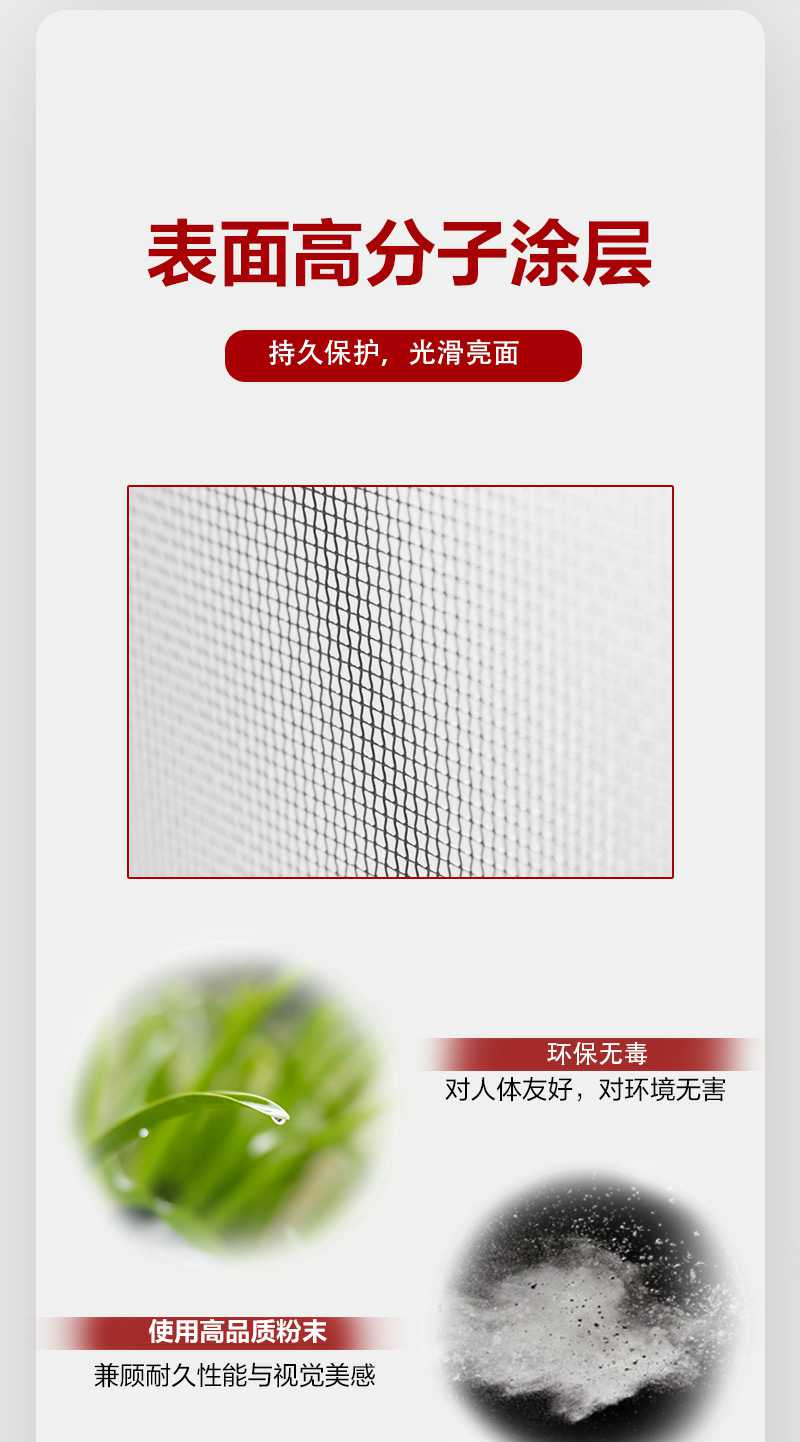

Product Features產品特點：經典黑不銹鋼窗紗是具有20年以上市場沉淀的全球通用型號。傳統工藝中，織網和噴涂是獨立的步驟，容易在挪動過程中導致產品變形。2021年，該產品工藝進行了升級，實現了在織網過程中直接進行噴涂，省去中間環節，避免了變形的風險。同時，靜電粉末噴涂工藝有效保護了不銹鋼鋼絲，防止氧化，提升了抗銹性能。高質量的粉末處理確保了絲徑交織點的穩定覆蓋，既保證了粉末的均勻性，也不影響產品的通風效果。升級后的工藝還解決了長久以來的網面不平整和波浪問題，使產品在市場中獲得更好的口碑。

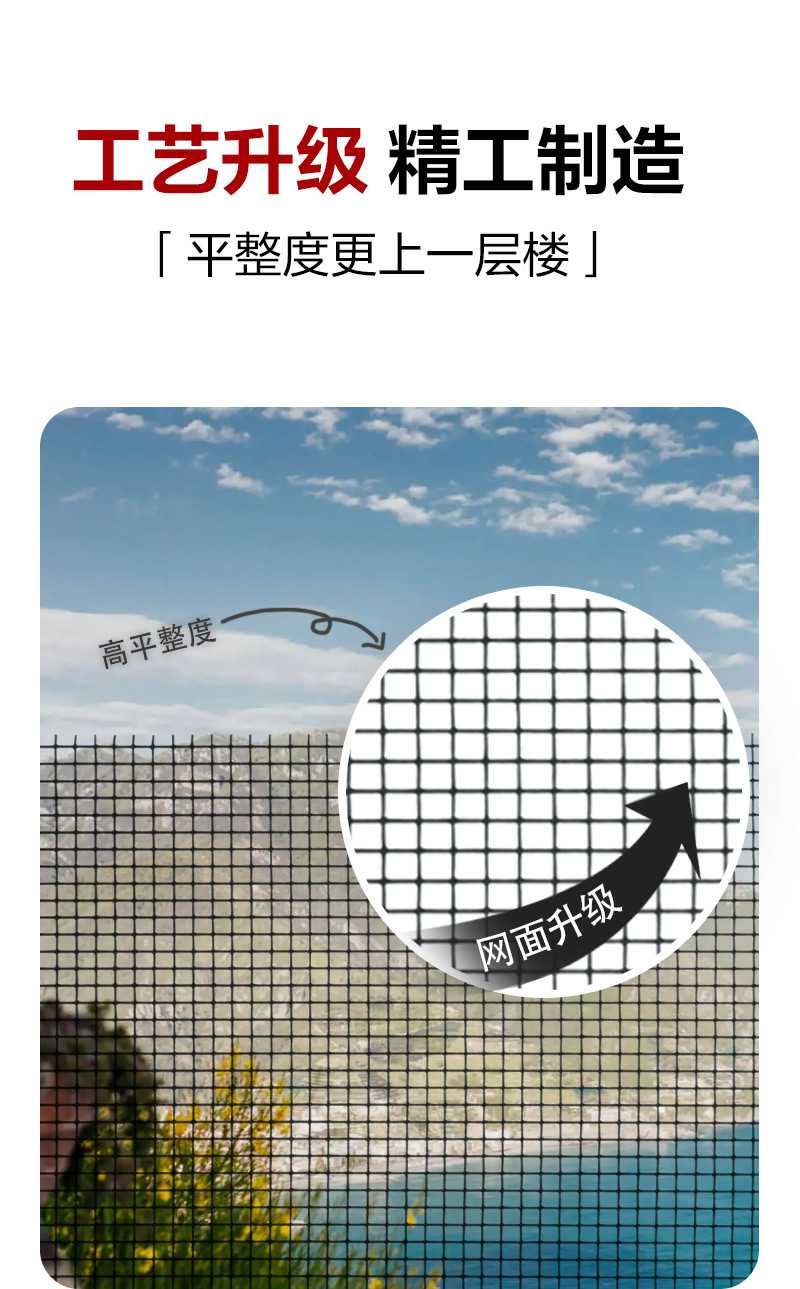

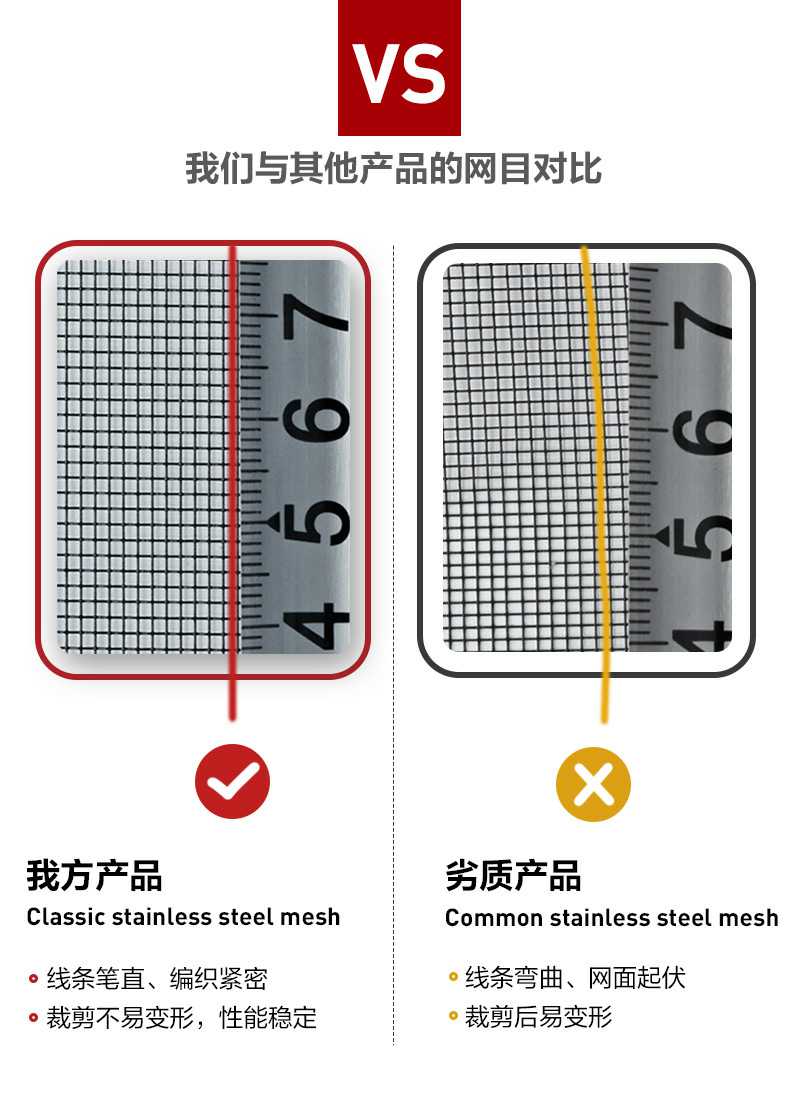

Stainless Steel Black Mosquito Mesh is a globally recognized model with over 20 years of market presence. Traditionally, weaving and coating were separate steps in the production process, which could lead to deformation of the product during handling. In 2021, the manufacturing process was upgraded to incorporate coating directly during the weaving process, eliminating the intermediate steps and reducing the risk of deformation. The electrostatic powder coating technique effectively protects the stainless steel wire from oxidation, enhancing its rust resistance. The high-quality powder treatment ensures stable coverage at the wire intersections, maintaining the uniformity of the coating without affecting the ventilation effectiveness of the product. This updated process also addresses longstanding issues of uneven surfaces and waviness, significantly improving the product’s reputation in the market.
